Kaiweets Inrush Clamp Meter, High Current 1000A, AC/DC, True RMS 6000 Counts, HT208D
R 2500.00

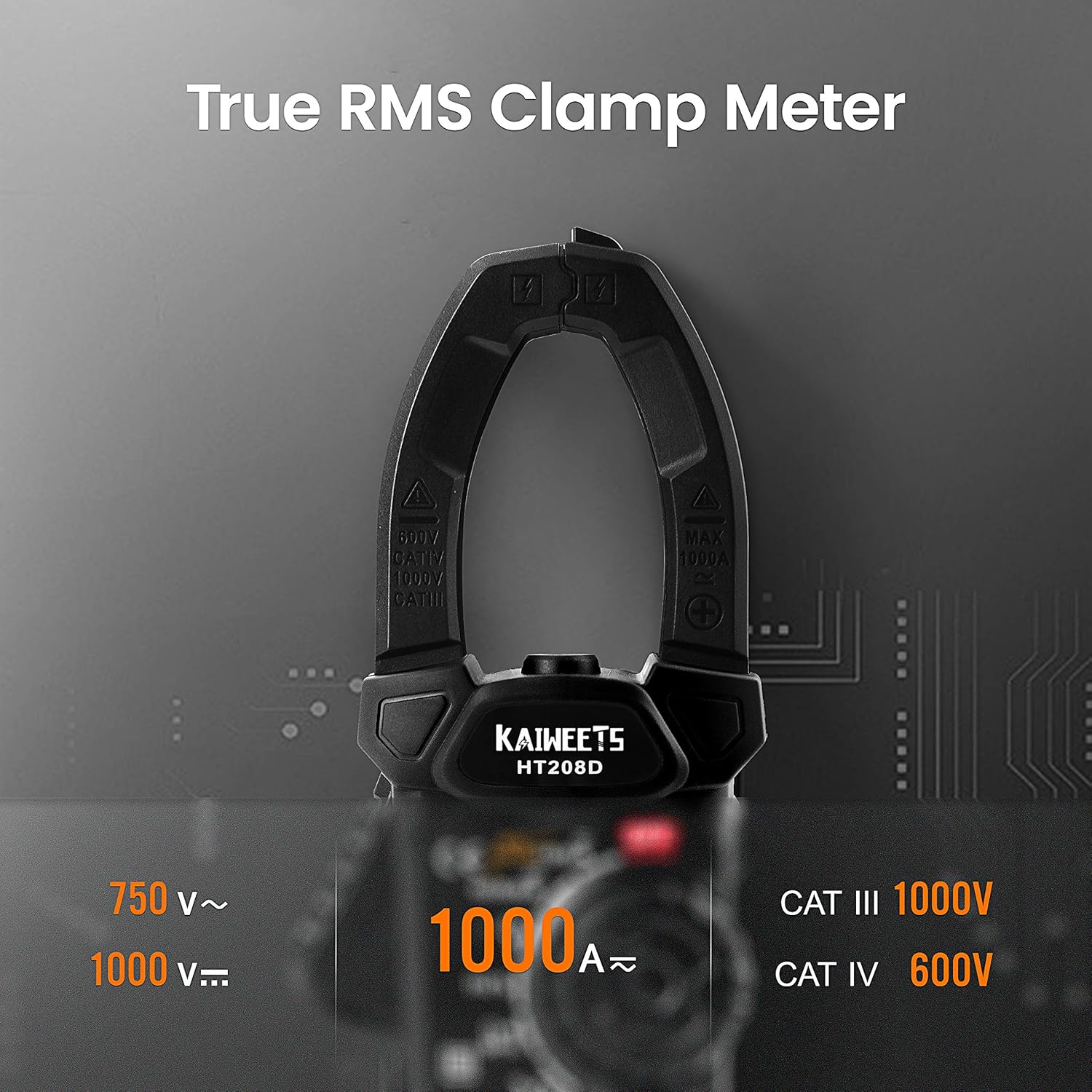

The KAIWEETS HT208D is a professional True‑RMS AC/DC clamp meter designed for electrical, industrial, HVAC, and automotive diagnostics. It supports high‑current measurement up to 1000A, includes inrush current capture, and provides accurate readings on variable‑frequency drives (VFDs). Safety‑rated to CAT III 1000V / CAT IV 600V, it is suitable for demanding field and workshop environments.
Key highlights include non‑contact voltage detection (NCV), LoZ mode to eliminate ghost voltages, temperature measurement via thermocouple, and a large clamp jaw for heavy conductors. Integrated backlighting and a built‑in flashlight improve usability in low‑light panels and enclosures.
Technical Specifications — KAIWEETS HT208D
General
- Type: Digital Clamp Meter (True RMS)
- Display: Backlit LCD, 6000 counts
- Auto‑Ranging: Yes
- Power: 3 × AAA batteries
- Safety Rating: CAT IV 600V / CAT III 1000V

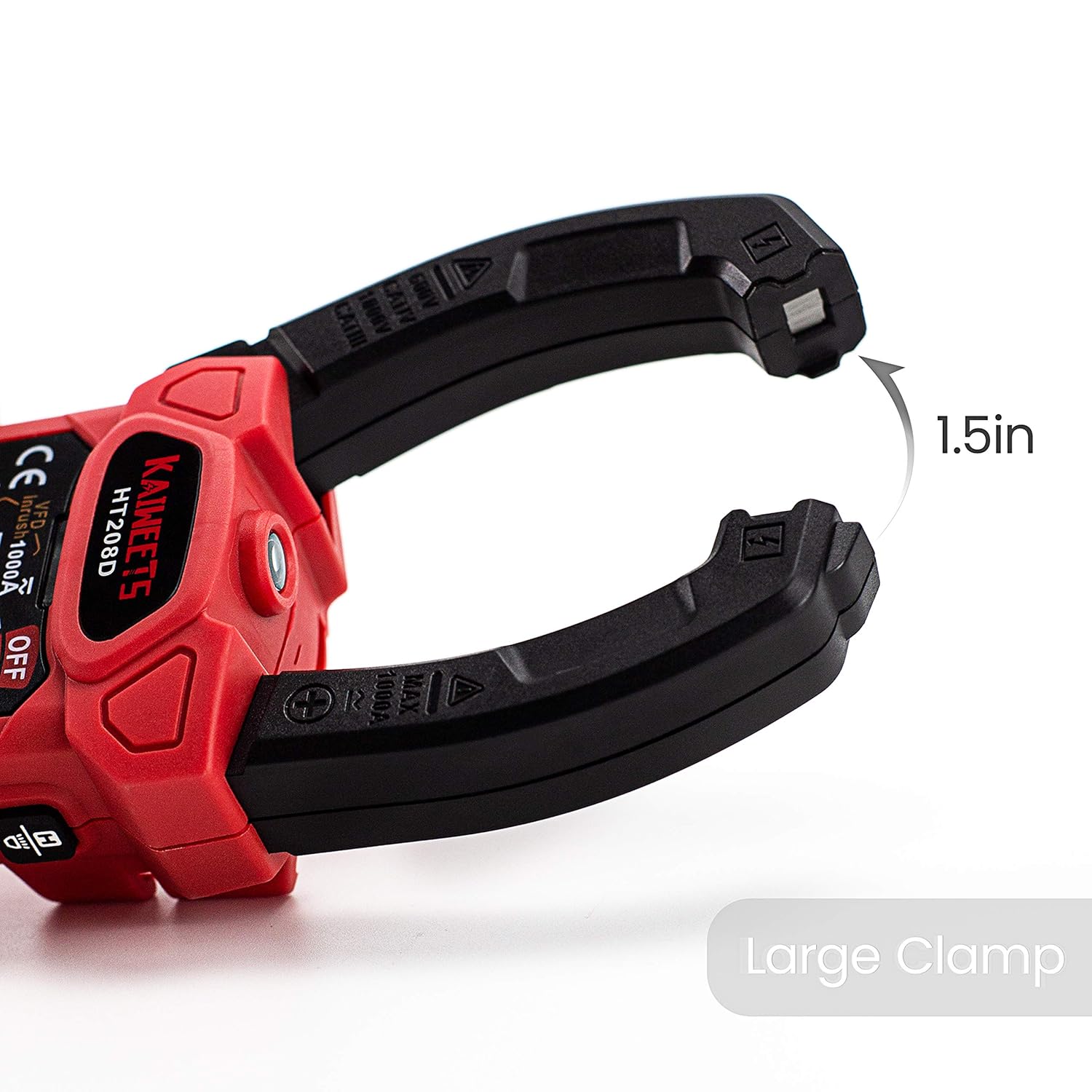

- Jaw Opening: 38 mm (1.5 in)
- Additional Hardware: Built‑in LED flashlight, Data Hold, Min/Max
Electrical Measurements
- AC Current (Clamp): Up to 1000 A
- DC Current (Clamp): Up to 1000 A
- AC Voltage: Up to 1000 V
- DC Voltage: Up to 1000 V

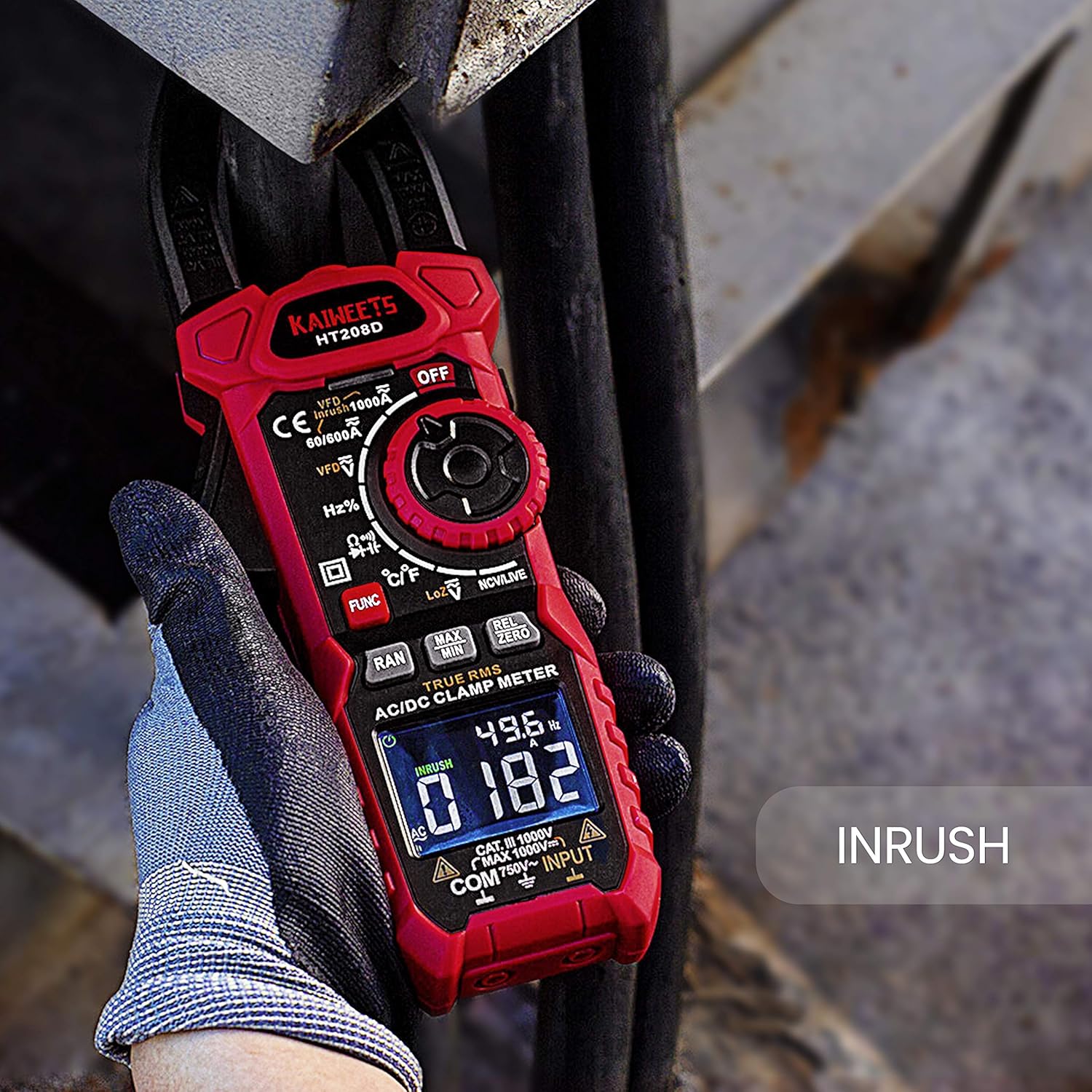

- Inrush Current: AC only, ~100 ms capture (valid above 10 A)
- VFD Mode: Yes (optimized filtering for variable‑frequency drives)
- Low‑Impedance (LoZ) Mode: Yes (reduces false/ghost readings)
Additional Functions
- Resistance: ✓
- Capacitance: ✓
- Frequency & Duty Cycle: ✓
- Continuity Test: Audible
- Diode Test: ✓
- Temperature: ✓ (thermocouple included)

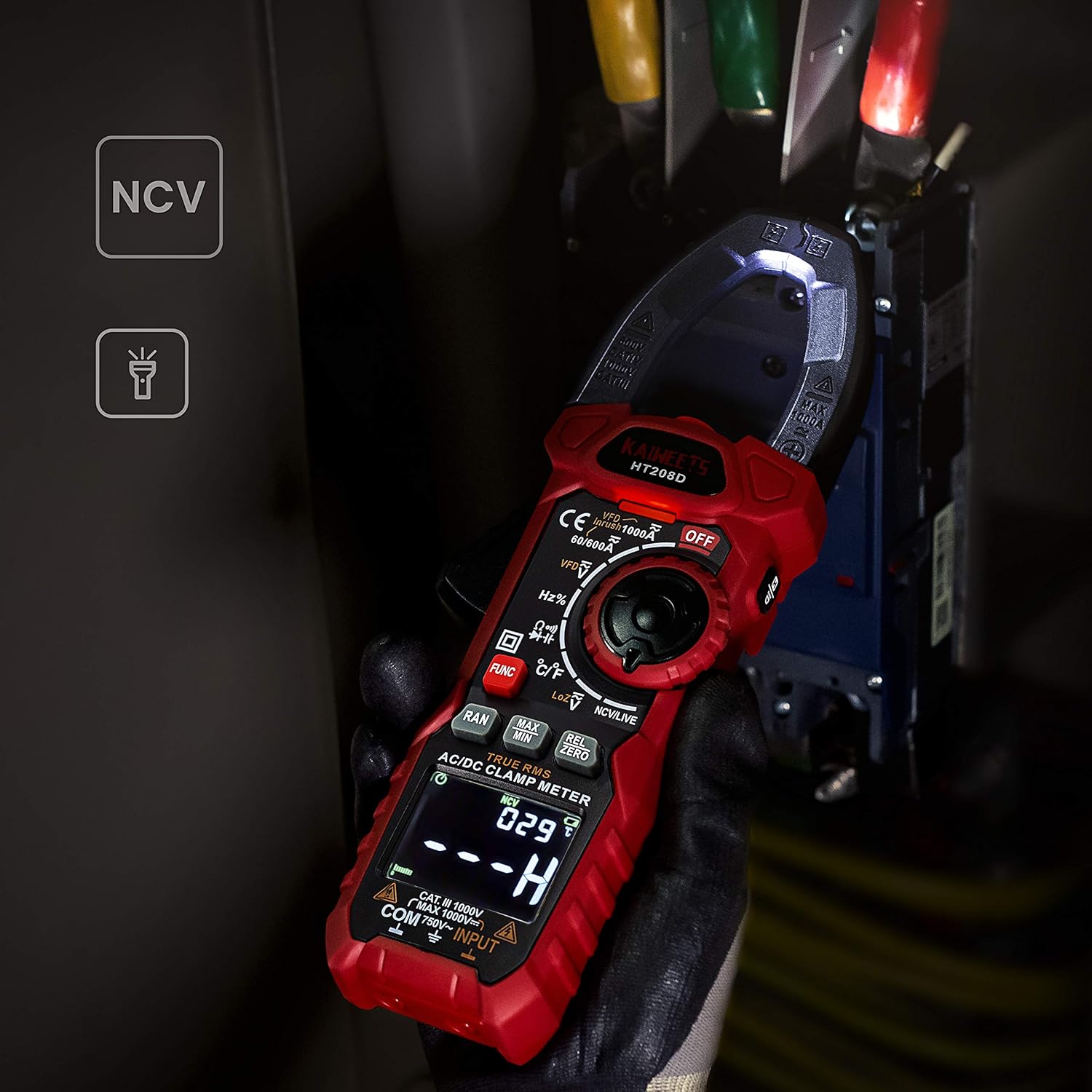

- NCV (Non‑Contact Voltage Detection): ✓
Safety & Compliance
- Standards: IEC 61010‑1
- Insulation: Double‑insulated
- Protection: Over‑voltage and overload protection
- Warranty: 36‑month manufacturer warranty (per Kaiweets)

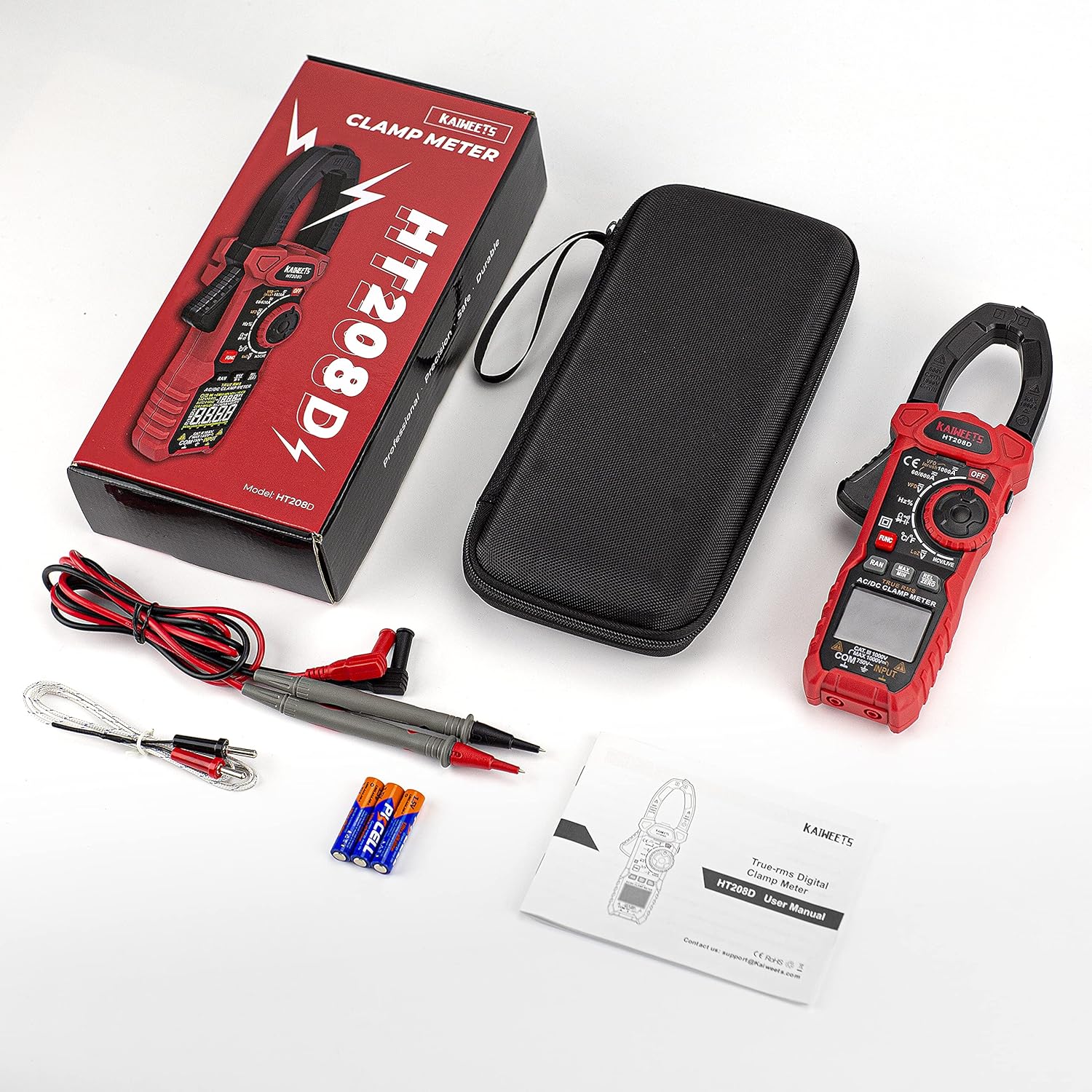

Supplied Accessories
- Clamp meter (HT208D)
- Test leads
- K‑type thermocouple
- Carrying case (EVA)
- User manual
- 3 × AAA batteries
Typical Use Cases
- Electrical panel diagnostics
- Motor startup and inrush current analysis
- VFD‑fed motor measurements
- HVAC and industrial maintenance

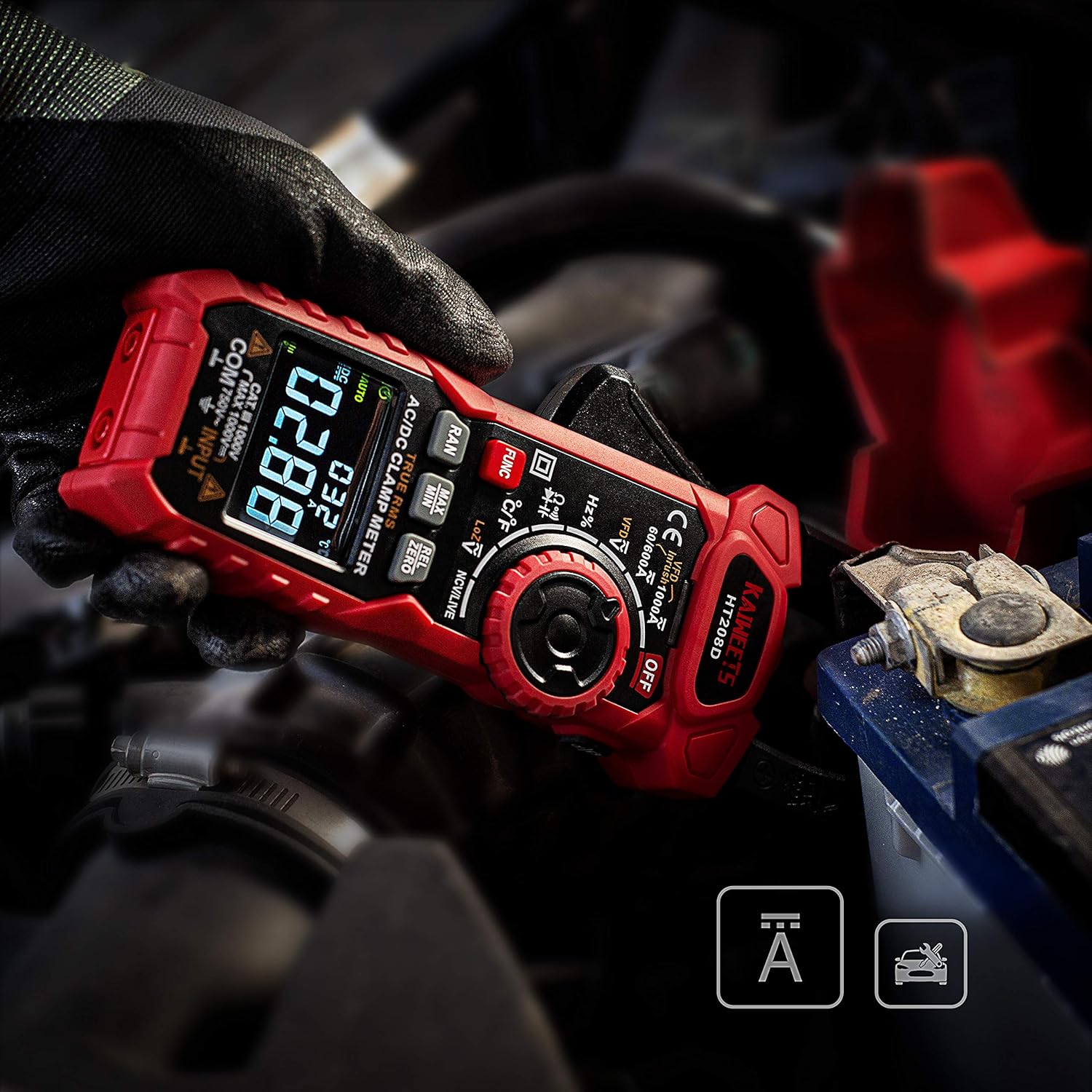

- Automotive electrical testing
