HUEPAR Self Levelling Cross-Line Laser Level B011G
R 980.00

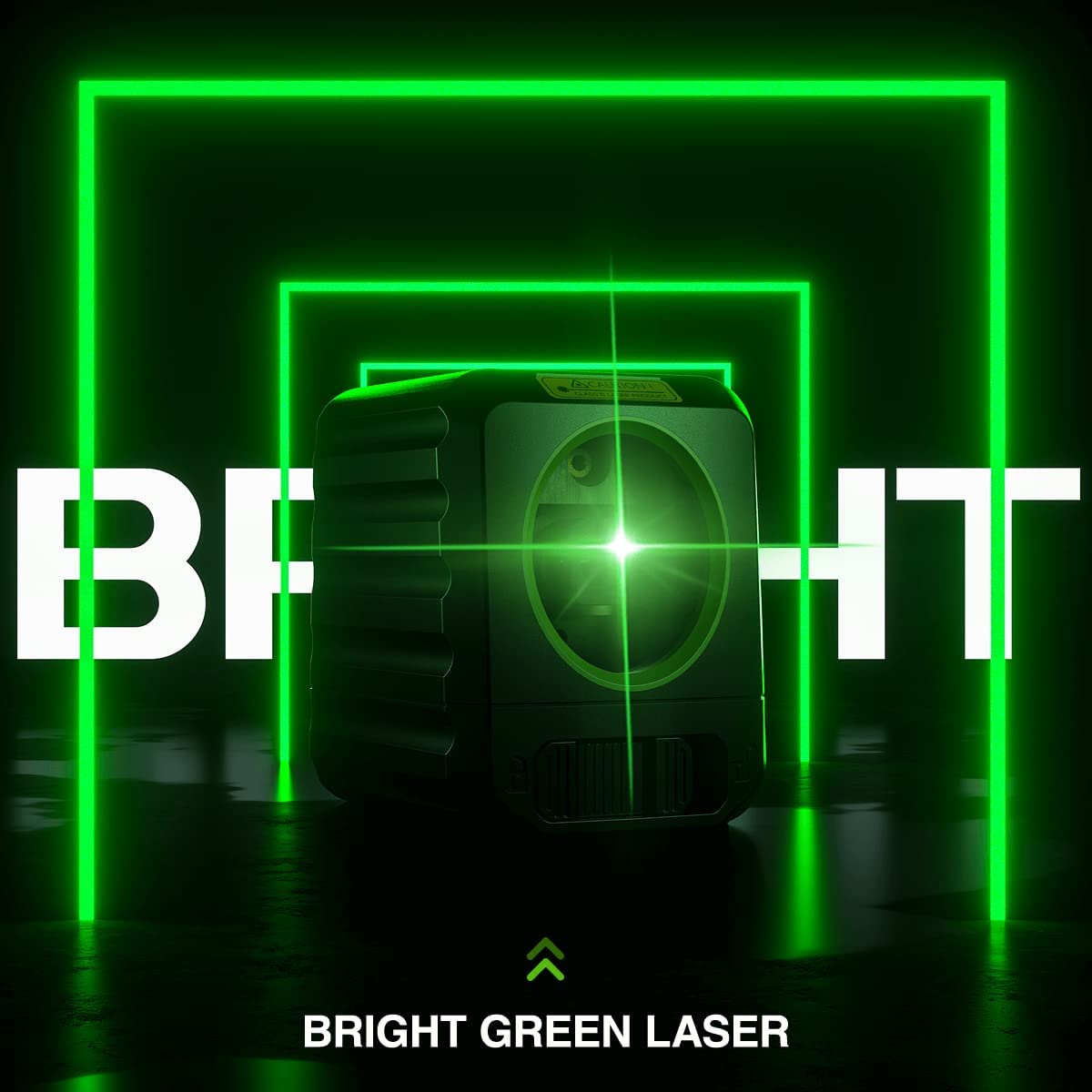

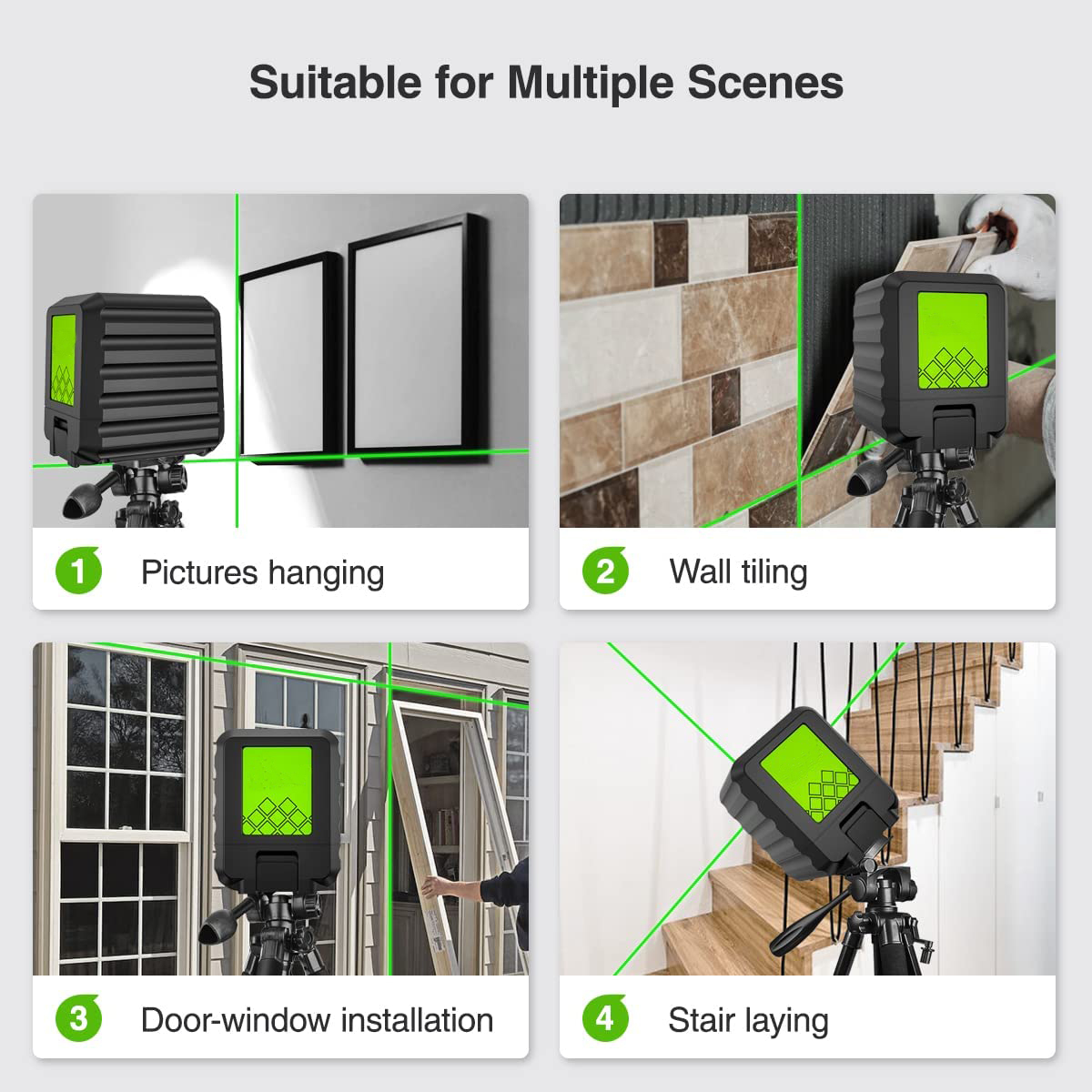

The Huepar B011G Self-Levelling Cross-Line Laser Level is a compact, entry-level green beam measurement tool. It features an Osram green diode that is up to two times brighter than standard red lasers, optimized for indoor tasks like carpentry, photo hanging, and alignment.
Technical Specifications
Laser Class: Class 2 (IEC/EN60825-1/2014) with an output power under 1mW.
- Laser Wavelength: 505–520 nm (Bright Green Beam).
- Laser Coverage: Horizontal 105° / Vertical 110° crosslines.
- Levelling Accuracy: ±3 mm at 10 metres (±1/9 inch at 33 feet).
- Self-Levelling Range: 4° ± 1° with a self-levelling time under 4 seconds.
- Working Range: Up to 30 metres (98 feet) under standard 60–100 LUX lighting conditions.

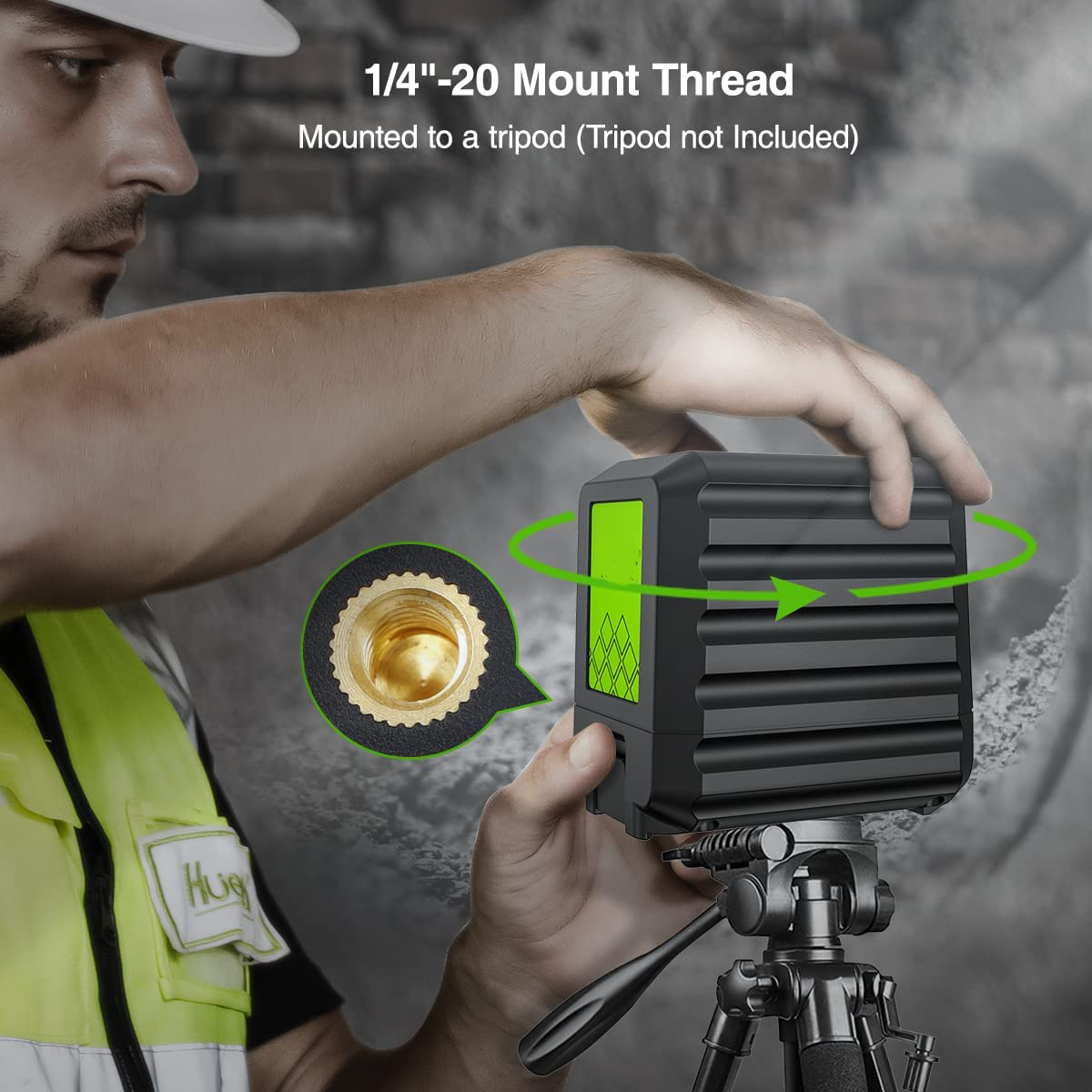

- Mounting Thread: Standard 1/4″-20 female thread for tripods.
- Ingress Protection: IP54 dustproof and waterproof rating.
Power & Environment

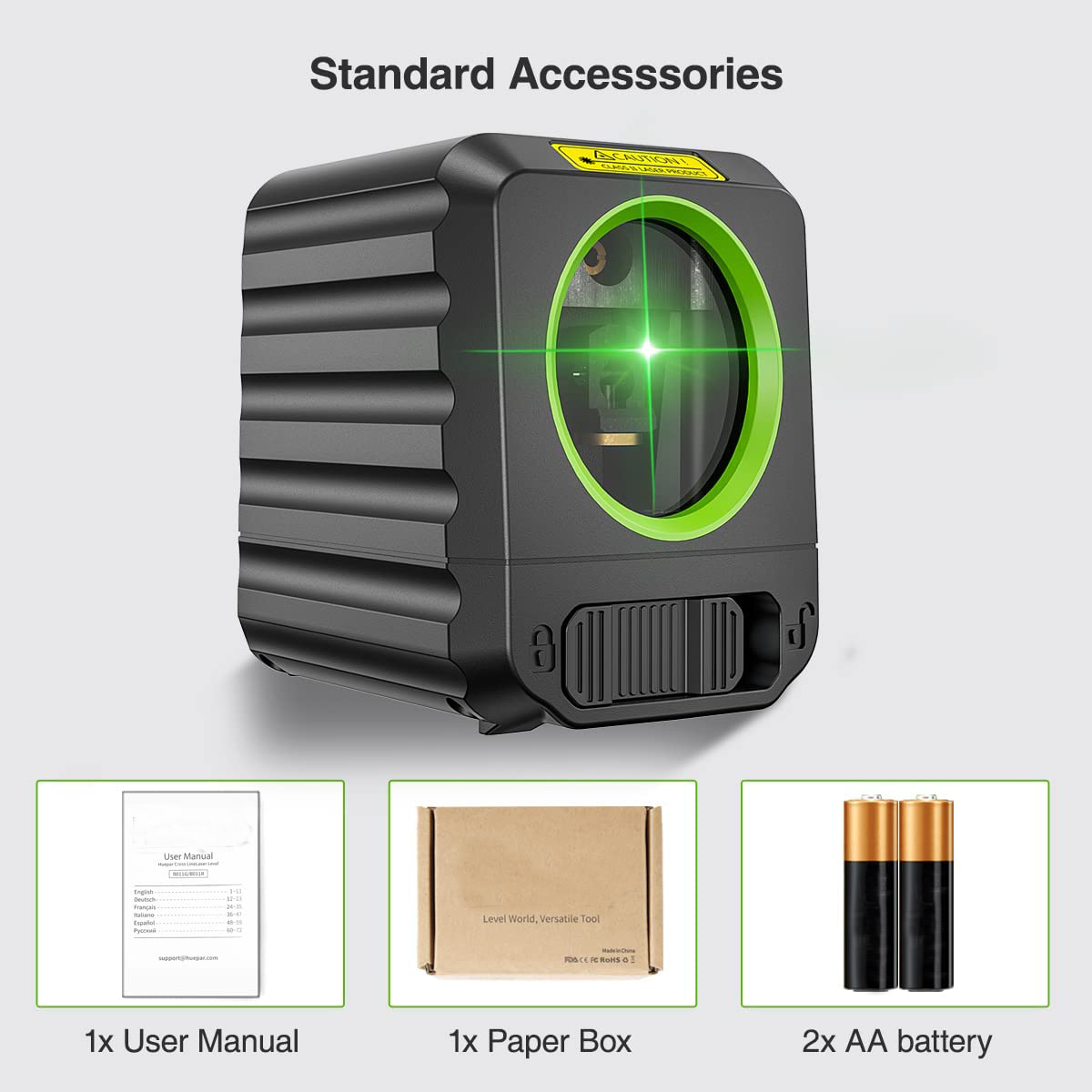

Power Source: 2 × AA (LR6) alkaline or high-capacity rechargeable batteries.
- Continuous Operating Time: Approximately 6 hours with all laser beams activated.
- Operating Temperature: -10°C to +50°C.
- Storage Temperature: -20°C to +70°C.
Operational Features

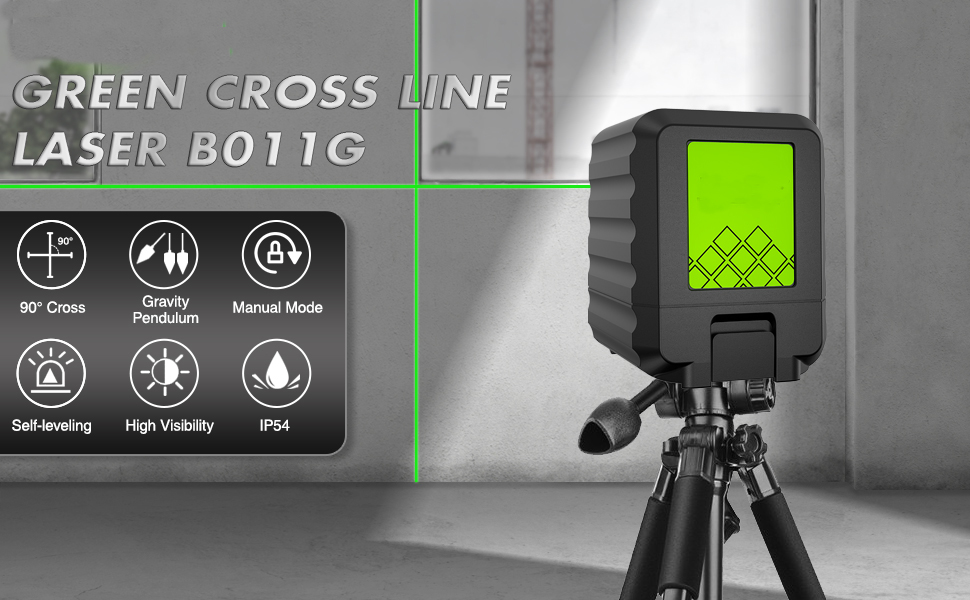

Dual Operation Modes: Employs a sliding switch to flip between an automatic self-levelling mode and a locked manual tilt mode for casting diagonal layout lines.
- Out-of-Level Indicator: The green laser lines flash continuously if the hardware is tilted beyond its 4-degree auto-calibration range.
- Integrated Pendulum Lock: Protects the internal mechanical levelling components against damage during transport and storage.
